Description

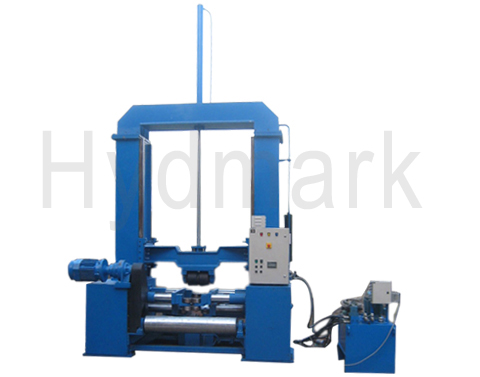

H beam assembly machine is generally applied in the spot welding and assembling of the cut plates. The flange and web plate of main frame respectively has two sets of centring clamping devices which are driven by hydraulic cylinder. The hydraulic cylinder drives rack to move gear which drives other transmission mechanism. This H beam automatic assembling machine is composed of main frame, flange plate, web plate, hydraulic power pack, electric motor.
The hydraulic cylinders on three sides of the machine can clamp the work piece accurately. And the system can automatically fasten, calibrate and position during the welding process.
Technical Specifications
- Size : 500 X 1200mm.
- Extra Conveyor.
- PLC controlled.
- 12000mm Length.
Application
- Process including clamping and centering web and flange with hydraulic transmission.
- Both sides clamped and aligned through mechanical system, ensuring positioning of web and flange of various width within specified range accurate automatic alignment, no need to adjust each time eccentricity roller.
- Upper press beam adapted with right and left 4 groups of guide-way, ensuring pressing stability.
- Used for inching adjustment hydraulic stopping rack at both sides can ensure alignment of end side of web and flange during assembly
Features
- The upper hold-down device is equipped with pressure maintaining system. Thus, H beam assembly machine is able to assembly and weld variable cross-section steel. Besides, it utilizes bidirectional four guide clamping to position, preventing shakes.
- Automatic centring clamping device can adjust flange plate width automatically.
- H beam automatic assembling machine is equipped with hydraulic lifting alignment device at the top.
- The retaining rack on the top of H beam assembly machine can ensure flange plate end aligns at web plate end.
- The hydraulic power pack is armed with fine filter to make sure solenoid valve can permanently and reliably be
used.
- The centring speed is quick with the adoption of mechanic-manual synchronized clamping centring.
- Sectional design is applied in roller bed and input rod system. According to users’ requirements and work-piece length, we can plus or minus roller beds.
